yttria stabilized zirconia beads for thermal barrier coating powder milling are used when fine grinding must combine efficient energy transfer with controlled wear and low unwanted contamination. A reliable specification connects ceramic composition and bead diameter to the mill, formulation, separator, target particle size, analytical limits, and repeat-order quality.

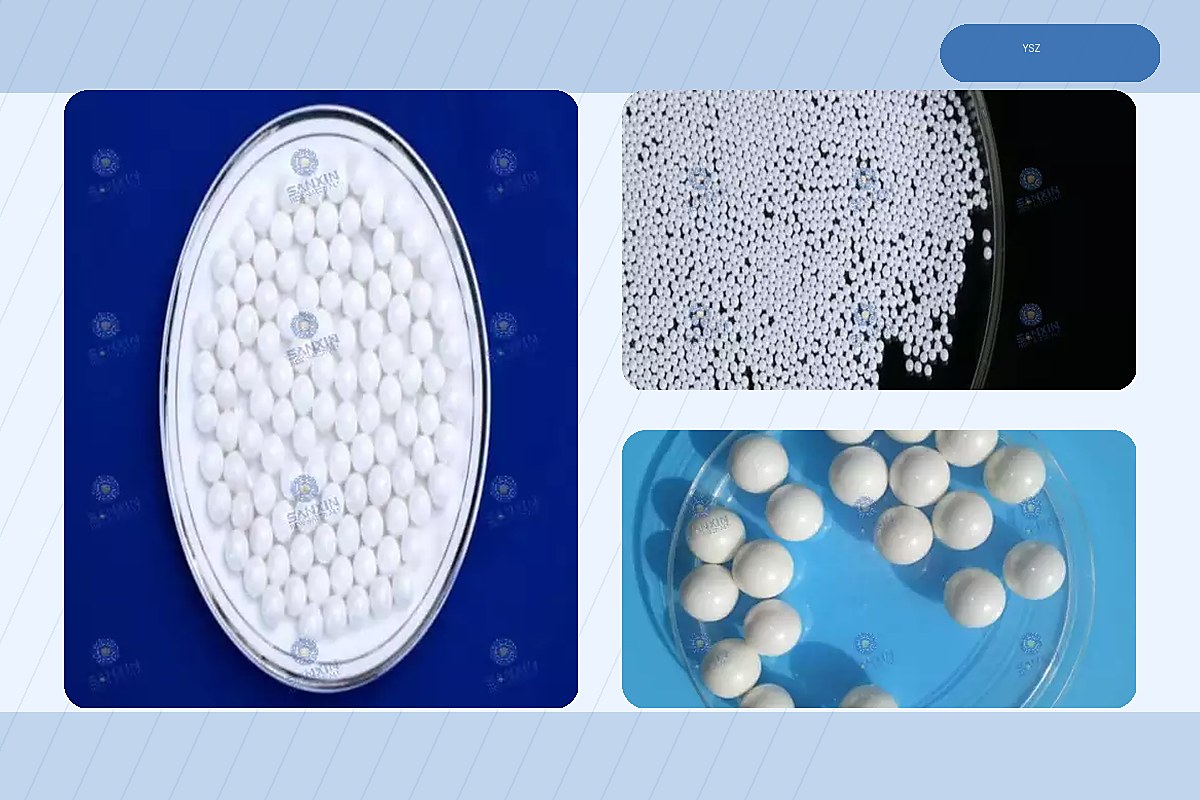

yttria-stabilized zirconia beads combine high density, hardness, fracture resistance, and a smooth surface. Density supports impact and shear inside a bead mill, while controlled microstructure helps reduce abnormal breakage. Buyers should compare processing time, energy, media consumption, cleaning, contamination, and batch repeatability instead of evaluating purchase price alone.
Thermal barrier coating powder milling can require stable particle-size control, low unwanted contamination, controlled viscosity, repeatable dispersion, and careful temperature management. YSZ media offers high density and a polished wear-resistant surface, but bead size must match the mill chamber, separator gap, ceramic powder, binder or dispersant system, solids loading, cooling capacity, and contamination limits.
Share the mill model, chamber volume, rotor type, separator gap, current media, feed particle size, target fineness, slurry viscosity, solids loading, temperature limit, atmosphere requirement, and expected throughput. These details allow a supplier to recommend a realistic bead diameter and trial quantity.
Zirconia composition and stabilizer type
Available bead diameters and size-distribution tolerance
True density, bulk density, hardness, and roundness
Wear-rate method and representative test result
Crushing strength, surface finish, and fragment control
Cleaning, magnetic separation, inspection, and traceability
Net package weight, liner, pallet method, MOQ, and lead time
The bead diameter must remain compatible with the separator and slurry flow. Media that is too large can reduce contact frequency. Media that is too small can increase hydraulic resistance or escape through an unsuitable screen. The practical choice balances energy transfer, circulation, separator safety, and final particle size.
Use one thermal barrier coating powder lot and keep the water or solvent system, binder, dispersant, solids content, mill loading, rotor speed, cooling target, and sampling intervals constant. Compare milling time, particle-size distribution, viscosity, temperature, media loss, zirconium pickup, iron pickup, filtration behavior, and slurry storage stability.
Inspect the beads after the test for chipping, flattening, fragments, discoloration, or unusual surface damage. Analyze product samples with the same methods. If contamination is critical, define the measured elements, sampling procedure, detection limit, and acceptance criteria before milling begins.
Incoming inspection can include package condition, lot label, bead-size sampling, visual roundness, density checks, and a short production comparison. Ask whether raw-material purity, forming, sintering, polishing, washing, and final inspection follow documented procedures. Retain an approved reference sample for tightly controlled products.
Supply consistency also depends on packaging and logistics. Heavy ceramic media needs strong liners, suitable pails or bags, pallet weight control, moisture protection, and clear lot identification. For ongoing use, discuss forecast volume, safety stock, lead time, and change-control practices.
Which zirconia composition and stabilizer are used?
Which bead size fits the separator and target particle size?
How is wear measured, and can a sample certificate be supplied?
How are cleaning, contamination control, and lot traceability managed?
What sample quantity, MOQ, packaging, and delivery time are available?
Start with the smallest practical YSZ bead that the separator and coating powder slurry can retain safely. Avoid excessive energy that overheats the batch, increases wear, or creates unstable viscosity. Prioritize verified wear performance, clean production, stable size distribution, lot traceability, and packaging that protects media cleanliness.
Send the formulation, mill model, separator gap, current media, feed and target particle size, viscosity, solids content, contamination limit, trial quantity, annual demand, and delivery destination. The supplier can then recommend a bead size and prepare a technically useful quotation.
A useful media trial for thermal barrier coating powder milling should be designed around preserving powder chemistry and sprayable morphology while breaking soft agglomerates. The role of yttria stabilized zirconia beads is to transfer energy consistently while avoiding unnecessary wear. Media diameter must remain safely above the separator limit, but it should also be small enough to create the contact frequency needed for the real feed distribution. The final choice therefore depends on the mill, separator, solids level, viscosity, target distribution, and contamination limit rather than product name alone.
The main process risk is that over-milling can broaden the fine fraction, raise slurry temperature, and change the feed behavior expected during coating deposition. Establish a controlled baseline before changing bead size or operating conditions. Record the raw-material lot, liquid system, dispersant and binder additions, solids content, batch mass, bead filling, rotor speed, flow rate, inlet and outlet temperature, sampling time, and cleaning state. Changing one major variable at a time makes the result useful for troubleshooting and future production transfer.
Use timed samples to track particle-size distribution, slurry temperature, viscosity, filtration residue, and any change in powder morphology at fixed sampling intervals. Test all samples at the same conditioning temperature because temperature alone can change viscosity and make two milling points look different. A practical endpoint is to release the batch only when agglomerates are reduced without an unnecessary rise in fines or detectable media-derived contamination. This prevents a lower particle-size reading from being accepted when filtration, rheology, product function, or contamination has already moved in the wrong direction.
Before the trial, define the sampling method, instrument settings, detection limits, and acceptance window. Include a blank or baseline contamination result when purity is important. Inspect the recovered media and mill screen for chips, unusual discoloration, flattening, or separator damage. Retain the feed, best trial sample, final batch, and a representative bead sample so later deviations can be compared with physical evidence rather than recollection.
For scale-up, hold energy per unit mass, cooling capacity, solids loading, and separator conditions comparable when moving from laboratory to production equipment. Milling minutes are not a universal transfer parameter because vessel geometry and power density change with equipment size. Confirm the production endpoint with the same tests used in development, then define operating ranges and action limits. Release checks should cover sprayability, coating deposition consistency, powder chemistry, and retained sample comparison. Trend the data by raw-material and media lot to distinguish normal variation from gradual wear or a process shift.
Document the validated recipe, start-up sequence, cooling response, sampling points, shutdown criteria, cleaning verification, and change-control rules. When a new media lot, formulation, separator, or mill is introduced, run a short comparison against the approved condition. The same validation logic is also illustrated in this related zirconia bead application study, which can be used as a framework while keeping acceptance criteria specific to the current product.
